Wifi Testing Rf 110db Shielded Chamber Against Electromagnetic Interference

WiFi Testing RF Shielded Chamber Against Electromagnetic Interference

Quick Detail:

· Packing in wooden case Lightweight, flexible and reliable, saving investment

· Customized Size accepted

· Material painted galvanized steel sheet

· Shielding Frequency 70-110dB

Description:

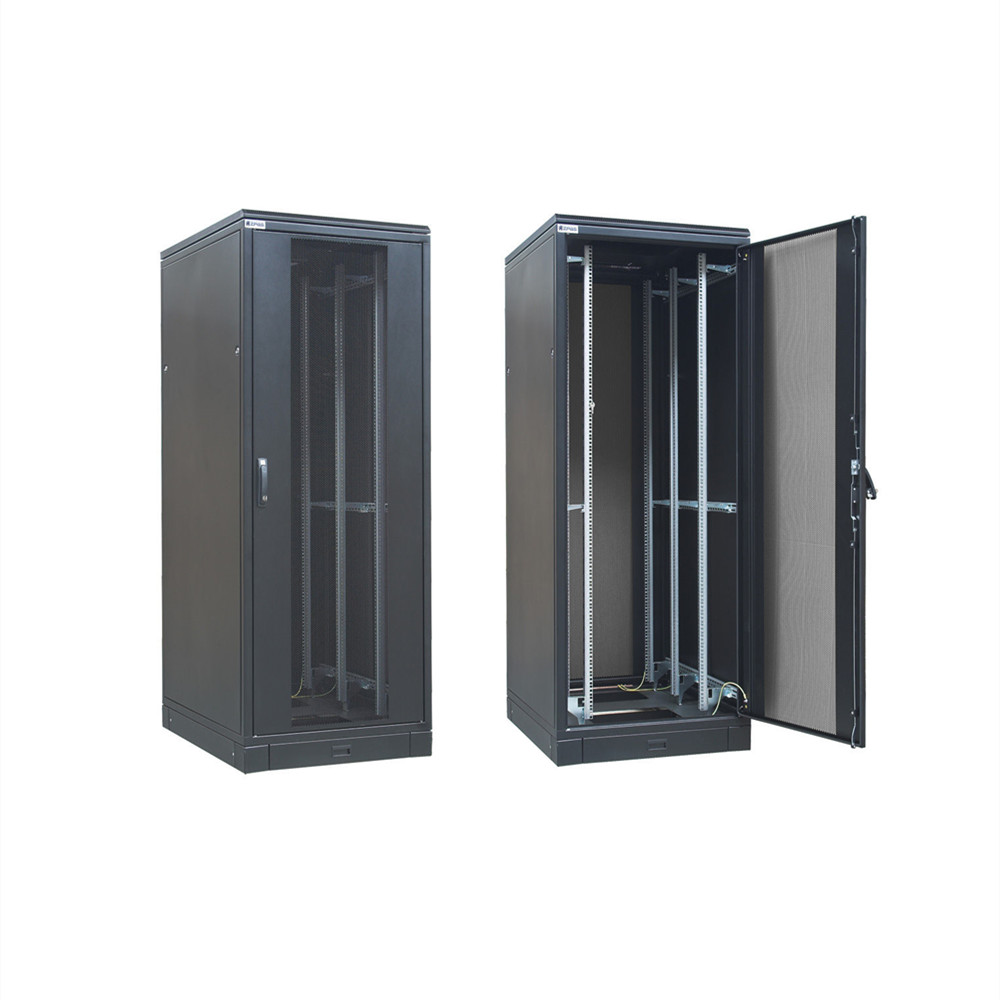

Electromagnetic shielding cabinet, the product is composed of steel plate into

a fully enclosed hexahedron, equipped with a ventilation system,

communication transmission system and other auxiliary facilities.

Performances:

Its Testing Method according to GB2190-90 Standard

C-grade (TPGI) Magnetic Field: 14KHz ≥ 70dB 150KHz ≥ 95dB

Electric Field: 200KHz~1GHz ≥ 100dB

Plane Wave: 50MHz~1GHz ≥ 100dB

Microwave: 1GHz~10GHz ≥ 95dB

B-grade (TPG2) 150KHz~930MHz ≥ 80dB

Specification

Size: 19 inches 18U, 20U, 26U, 33U, 37U, 42U

Performance Level A:

Magnetic field 14KHz ≥ 10dB, 100KHz ≥ 30dB, plane wave 50MHZ-1ghz ≥ 40dB, microwave 1GHZ-10ghz≥ 40dB

Performance Level B:

Magnetic field 14KHz ≥ 40dB, 100KHz ≥ 60dB, plane wave 50MHZ-1ghz ≥ 80dB, microwave 1GHZ-10ghz ≥ 80dB

Performance Level C:

Magnetic field 14KHz ≥ 70dB, 150KHz ≥ 90dB, electric field 200KHz~1GHz ≥ 100dB

Plane wave 50MHZ-1ghz ≥ 100dB, microwave 1GHZ-10ghz ≥ 95dB

FAQ:

RF Shielded Chamber Material Customized Size RF EMC Door Shielded Cabinet

Q1. Can I have a sample order for RF EMC Door and Shielded Cabinet?

A: Yes, MOQ 1pc.

Q2. What about the lead time?

A: Usually 7-10 working days.

Q3. Do you have any MOQ limit for the order?

A: Low MOQ, 1pc is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.

Q5. How to proceed with an order for the door and cabinet?

A: Firstly let us know your requirements or size, thickness and also quantity.

Secondly, We quote according to your requirements or our suggestions.

Thirdly customer confirms.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?

A: We can offer OEM service.
