Brass Frame Rf Shielded Doors White Color Manual Opening 1.2m Width
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | MRI Room, RF Room | Material | Brass Copper |
|---|---|---|---|
| Open Style | Manual | Color | White |
| Size Of Door | 1.2*2.1m And Customized | Addition | With Lock Systems And Keys, Doors Handle |
| Highlight | brass frame rf shielded doors,manual opening rf shielded doors,1.2m width shielded doors |
||
Product Description

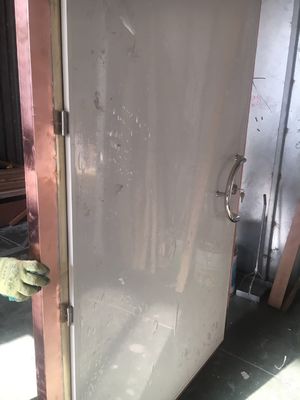

Brass Frame White Color Manual Opening Door Rf Shielded Doors 1.2m(W)
The door can be designed and produced according to customers’ requirements,
Such as manual, electric, pneumatic, sliding track operation, single door, double door, and so on.
RF Shielding Door is the most important part during RF shielding room installation,
Which is usually made of cold-roll steel sheets.
1. Specification
|
Size
|
Standard 1.2*2.1 meter
|
|
Material
|
Brass frame + copper foil + white fireproof board + threshold
|
|
Flange
|
With a copper flange for shielding
|
|
Attenuation
|
10MHz~1GHz meet 100dB
|
|
Packing
|
Wooden packing or customized
|
|
Shipping
|
By sea or customized
|
2. Product features
1) Hinge rotation, single & double knife-edge technology, double shielding
effectiveness performance.
2) The most widely used electromagnetic shielding door nowadays. The access control system
can be added.
3) Using high-performance Becu finger strips, long service life, easy and convenient to open
and close.
4) Two-point latching mechanism for tight, locking seat frame with roller bearings structure,
running smooth and light.
3. Advantages
1) Door threshold direction could modify during assemble
2) Standard door entrance size is according to the hospital cart pass
3) Non-magnetic materials
4) High performance with reasonable prices
5) Easy to repair or replace spare parts
4. Shielding performance
Magnetic Field:
15MHz 100dB
Electric Field:
10MHz 100dB
30MHz 100dB
Plane Wave:
30MHz 100dB
100MHz 100dB
130MHz 100dB
FAQ:
Q1. How does your factory do related quality control?
A: Quality is a top priority. We attach great importance to quality control from the very beginning of manufacturing.
Q2. How do I pay for my purchase order?
A: We can accept the following payment methods: T/ T, L/ C, D/ A, D/ P, and we also can accept Westernunion
If you want another payment please contact us.
Q3. Is there a tracking number for my item?
A: Yes, of course. We usually ship your goods by EMS, DHL, FedEx, UPS, TNT with the online track,
you can view the shipment status on the website.
