2oz Electrodeposited Copper Foil Shielding 1320mm Width Pure

  • 2oz Electrodeposited Copper Foil Shielding 1320mm Width Pure
  • 2oz Electrodeposited Copper Foil Shielding 1320mm Width Pure
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-1
Minimum Order Quantity 200kg
Price USD 19-25 + kg
Packaging Details Wooden Case
Delivery Time 5-8 work days
Payment Terms Western Union, L/C, D/A
Supply Ability 20MT per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Red Copper Delivery Time 7 Working Days
Thickness 3oz 0.105mm Width 1320mm
MOQ 200kg Packing Wooden Case
Highlight

2oz copper foil shielding

,

electrodeposited copper foil shielding
Leave a Message
Product Description

3oz Electrodeposited Shielding 1320mm Width Pure Copper Foil



Quick Detail:



1. 3oz 0.105mm thickness 1320mm width

2. MOQ 200kg

3. High Elongation and high tensile performance

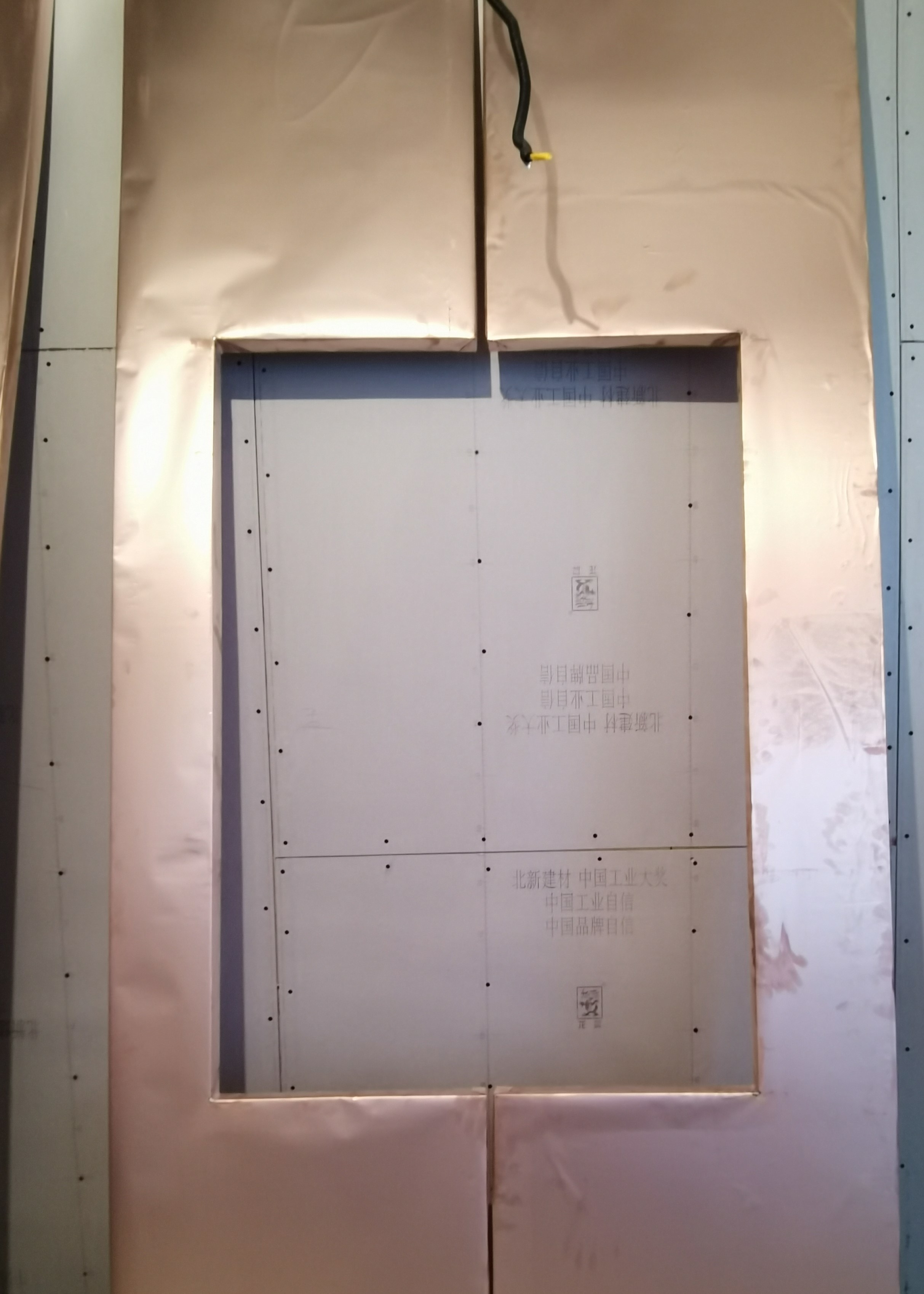

4. Using for MRI RF Room or Faraday Cage Shielding Field



Description:



1. Lightweight



2. Copper Serves as an eddy current shield for EMI Protection.



3. Copper with 1320mm width or wider, can be more easy to install, especially for roofing, wall and floor.



4. Necessary to prevent RF noise from entering into the MRI scanner and distorting the image. Copper is

generally considered the best shielding for MRI rooms compared with Al and GL..

Easily and quickly modified on site



5. High-performance, vertically-supported modular enclosure





Specification:





Quality Items General Technical Terms
Normal Thickness 2oz 3oz 4oz 5oz 6oz
0.07mm 0.105mm 0.140mm 0.175mm 0.210mm
Area Weight(g/m2) 560-610 838-960 1100-1280 1380-1600 1650-1920
Tensile Strength Room Temperature ≥28 ≥28 ≥28 ≥28 ≥28
(kg/mm2)
Elongation Room Temperature ≥10 ≥10 ≥10 ≥10 ≥10
(%)
Leakage Points (points/m2) No
High-Temperature Anti-Oxidization Performance(180℃/h) No Oxidization
Width Tolerance (+2.0,-2.0)


2oz Electrodeposited Copper Foil Shielding 1320mm Width Pure 0
