12mm Thickness Lead Glass Radiation Shielding 1200 * 1000mm Standard Size X Ray
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 12mm Thickness 1200 * 1000mm Standard Size X Ray Lead Glass | Thickness | 12mm |
|---|---|---|---|
| Application | Xray Room, CT Room, Cath Lab, DR Room | Lead Equivalent | 2.6mmpb |
| Color | Transparent | Size | 1200 * 1000mm Standard, Can Be Customized |
| Highlight | lead glass radiation shielding 12mm,1200x1000mm lead glass radiation shielding,x ray lead glass 12mm |
||
Product Description

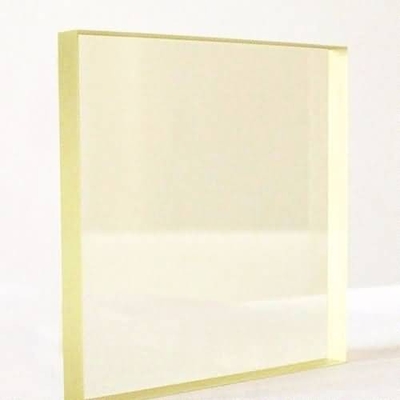

12mm Thickness 1200 * 1000mm Standard Size X Ray Lead Glass
Quick Detail:
· Customized Size accepted
· Stainless Steel frame
· Packing in wooden case
Specification:
| 8mm | 10mm | 12mm | 15mm | 18mm | 20mm | 25mm | |
| ( 1.7mmpb) | ( 2.1mmpb) | ( 2.6mmpb) | ( 3.3 mmpb) | ( 3.96 mmpb) | ( 4.4 mmpb) | ( 6.71 mmpb) | |
| 200* 300 | 200* 300* 8 | 200* 300* 10 | 200* 300* 12 | 200* 300* 15 | 200* 300* 18 | 200* 300* 20 | - |
| 300* 400 | 300* 400* 8 | 300* 400* 10 | 300* 400* 12 | 300* 400* 15 | 300* 400* 18 | 300* 400* 20 | - |
| 400* 600 | 400* 600* 8 | 400* 600* 10 | 400* 600* 12 | 400* 600* 15 | 400* 600* 18 | 400* 600* 20 | - |
| 600* 800 | 600* 800* 8 | 600* 800* 10 | 600* 800* 12 | 600* 800* 15 | 600* 800* 18 | 600* 800* 20 | - |
| 600* 900 | 600* 900* 8 | 600* 900* 10 | 600* 900* 12 | 600* 900* 15 | 600* 900* 18 | 600* 900* 20 | - |
| 1000* 800 | 1000* 800* 8 | 1000* 800* 10 | 1000* 800* 12 | 1000* 800* 15 | 1000* 800* 18 | 1000* 800* 20 | 1000* 800* 25 |
| 1200* 800 | 1200* 800* 8 | 1200* 800* 10 | 1200* 800* 12 | 1200* 800* 15 | 1200* 800* 18 | 1200* 800* 20 | 1200* 800* 25 |
| 1200* 900 | 1200* 900* 8 | 1200* 900* 10 | 1200* 900* 12 | 1200* 900* 15 | 1200* 900* 18 | 1200* 900* 20 | 1200* 900* 25 |
| 1200* 1000 | 1200* 1000* 8 | 1200* 1000* 10 | 1200* 1000* 12 | 1200* 1000* 15 | 1200* 1000* 18 | 1200* 1000* 20 | 1200* 1000* 25 |
| 1200* 1200 | - | 1200* 1200* 10 | 1200* 1200* 12 | 1200* 1200* 15 | 1200* 1200* 18 | 1200* 1200* 20 | 1200* 1200* 25 |
| 1500* 900 | - | 1500* 900* 10 | 1500* 900* 12 | 1500* 900* 15 | 1500* 900* 18 | 1500* 900* 20 | 1500* 900* 25 |
| 1500* 1000 | - | 1500* 1000* 10 | 1500* 1000* 12 | 1500* 1000* 15 | 1500* 1000* 18 | 1500* 1000* 20 | 1500* 1000* 25 |
| 1500* 1200 | - | 1500* 1200* 10 | 1500* 1200* 12 | 1500* 1200* 15 | 1500* 1200* 18 | 1500* 1200* 20 | 1500* 1200* 25 |
| 1600* 1000 | - | 1600* 1000* 10 | 1600* 1000* 12 | 1600* 1000* 15 | 1600* 1000* 18 | 1600* 1000* 20 | 1600* 1000* 25 |
| 1600* 1200 | - | 1600* 1200* 10 | 1600* 1200* 12 | 1600* 1200* 15 | 1600* 1200* 18 | 1600* 1200* 20 | 1600* 1200* 25 |
| 1800* 1000 | - | 1800* 1000* 10 | 1800* 1000* 12 | 1800* 1000* 15 | 1800* 1000* 18 | 1800* 1000* 20 | 1800* 1000* 25 |
| 1800* 1200 | - | 1800* 1200* 10 | 1800* 1200* 12 | 1800* 1200* 15 | 1800* 1200* 18 | 1800* 1200* 20 | 1800* 1200* 25 |
| 2000* 1000 | - | 2000* 1000* 10 | 2000* 1000* 12 | 2000* 1000* 15 | 2000* 1000* 18 | 2000* 1000* 20 | 2000* 1000* 25 |
| 2000* 1200 | - | 2000* 1200* 10 | 2000* 1200* 12 | 2000* 1200* 15 | 2000* 1200* 18 | 2000* 1200* 20 | 2000* 1200* 25 |
| 2400* 1200 | - | 2400* 1200* 10 | 2400* 1200* 12 | 2400* 1200* 15 | 2400* 1200* 18 | 2400* 1200* 20 | 2400* 1200* 25 |
Description:
Lead glass provides excellent radiation shielding, superb visual clarity, high light transmission and does
not discolour due to radiation. The hard, polished surfaces have excellent scratch resistance
X-ray Protective glass Anti-radiation Lead glass viewing windows are an important feature for any
scanning room, safely allowing the operator to view their patient in a protective environment.
Application:
Δ X-ray shielding in hospitals
Δ observations windows
Δ door glazing
Δ nuclear medicine application
Δ multiple glazing units providing shaped observation solutions
Disinfection of Radiation Shielding Glass
Δ only use water, a mild detergent and a soft cloth
Δ Lead glass can be disinfected using commercially available disinfectants that has approved.
Disinfection using ultraviolet irradiation is also possible
Δ radiation shielding glass should never be exposed to moisture or temperature fluctuations in
conjunction with moisture and acidic air
Δ only use a sealant that is free of acids and alkaline substances (e. g. acetic acid, ammonia)
during installation. Adhesive
FAQ:
12mm Thickness 1200 * 1000mm Standard Size X Ray Lead Glass
Q1. What about the lead time?
A: Usually 5-8 working days.
Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by Air and Sea. Also shipping by express will be quicker.
