25m/Roll 150mm Width Conductive Adhesive Copper Tape For Rf Cage

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | 150mm Width Copper Foil Tape With Conductive Adhesive For Rf Cage | Thickness | 0.06mm |
---|---|---|---|
Adhesive Type | Conductive Adhesive Or Normal Adhesive | Width | 25mm, 50mm Or Customized |
Length | 25m/roll, 50m/roll Or Customized | Application | MRI Room, RF Shielding Room, Stained Glass, Guitar |
Highlight | 25m/roll conductive adhesive copper tape,rf cage conductive adhesive copper tape,150mm width copper foil tape |

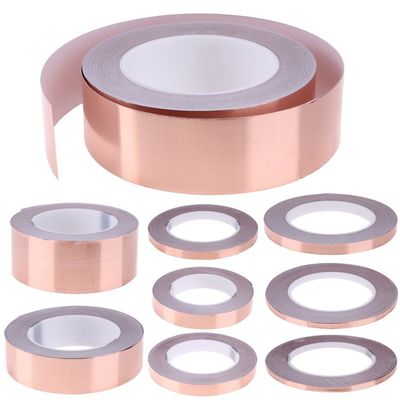

150mm Width Copper Foil Tape With Conductive Adhesive For Rf Cage
Product description
- Strong Adhesive - Kirecoo copper tape [2inch, 33FT], The copper foil tape conductive adhesive is super sticky and is protected with an easy peel backing which make it can be used on most surfaces & is able to withstand all weather conditions.
- Highly Conductive - Our copper foil uses a highly conductive material with low resistance, has dual conductivity so current will flow through both sides and the adhesive. No need to worry that the copper tape conductive adhesive will reduce the effectiveness between components, making our emi shielding foil a excellent option for electrical projects, repairs and even paper circuits. Excellent alternative to conductive paints.
- EMI & RFI Shielding - This copper foil tape with conductive adhesive Shielding electric guitar to avoid interference, shield the pickup and control cavities of a guitar. Prevent radiating and interfering, making it an ideal guitar shielding tape option. Perfect for any guitar builder/ luthier.
- Good helper for gardening - This copper tape can for slugs. You can wrap copper tape around the base of small plants Works for keeping slugs & snail away! Seedlings to protect plants. This was the perfect eco friendly solution!
- Creative Decoration - Our copper tape is a desirable choice for decorating your home, making personalized wall vinyl’s, jewellery, stainless glass & more that will come in handy for various DIY & Creative projects. Also perfect for solder, birthday light card, paper circuit or repair such as LCD monitor mobile phone.
Specification of 0.06mm thickness copper tape
Specification(0.06mm thickness) | |||||
Item | Unit | Specification | Texting Standard | Texting Method | Others |
Copper Thickness | u | 25 | 25± 3 | ||
Basis Weight | g/ m2 | 160 | 160± 10 | ||
Copper Foil | % | 99.95 | 99.95 | ||
Glue Thickness | u | 35 | 35+ 3 | ASTM- 1000 | |
Composition | ----- | Acrylic glue | Acrylic glue | ||
Total thickness | u | 60 | 60+5 | ||
Steel Adhesion | kg/ 1" | 0.8 | 0.8 | ASTM- 1000 | Initial adhesion tester |
Initial Adhesion | kg/ 1" | 1 | 1 | J.DOW | Electronic Stripping Tester |
Rentention(cohesion) | kg/ h | 48 | 48 | PSPC-7 | Viscosity Tester |
Weather Resistance | ℃ | minus10- 120℃ | minus10-120℃ | ||
Inventory Condition | ----- | ----- | temperature:25℃ | ||
RH:65% | |||||
Insulation Resistance | Ω | 0.01- 0.06 | 0.01-0.06 | ||
Inventory Validity | 6 month |
Application
Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook
computers, photocopiers,
and other electronic products where domestic electromagnetic shielding.
The copper foil tape Is a metal tape, mainly used in electromagnetic shielding,that is electrical shielding
and magnetic signals of shielded two kinds,
Electrical shielding mainly relies on conductive properties of copper itself, which is excellent, But magnetic
shielding foil relies on conductive substance "Nickel ",
which is on the surface of acrylic adhesive, to achieve magnetic shielding effect. Copper foil tape is widely
used in mobile phones, notebook computers,
and other digital products. Currently, on the market most commonly used copper foil tape, general test
performance is as follows: copper foil tape Material: CU 99.98%.
