Mri Room Double Conductive Adhesive Copper Tape Emi Shielding
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | MRI Room Conductive Copper Tape Double Adhesive Emi Shielding | Thickness | 0.12mm |
|---|---|---|---|
| Width | 25mm, 50mm Or Customized | Length | 25m/roll, 50m/roll Or Customized |
| Highlight | mri room conductive adhesive copper tape,double conductive adhesive copper tape,emi copper foil shielding tape |
||
Product Description

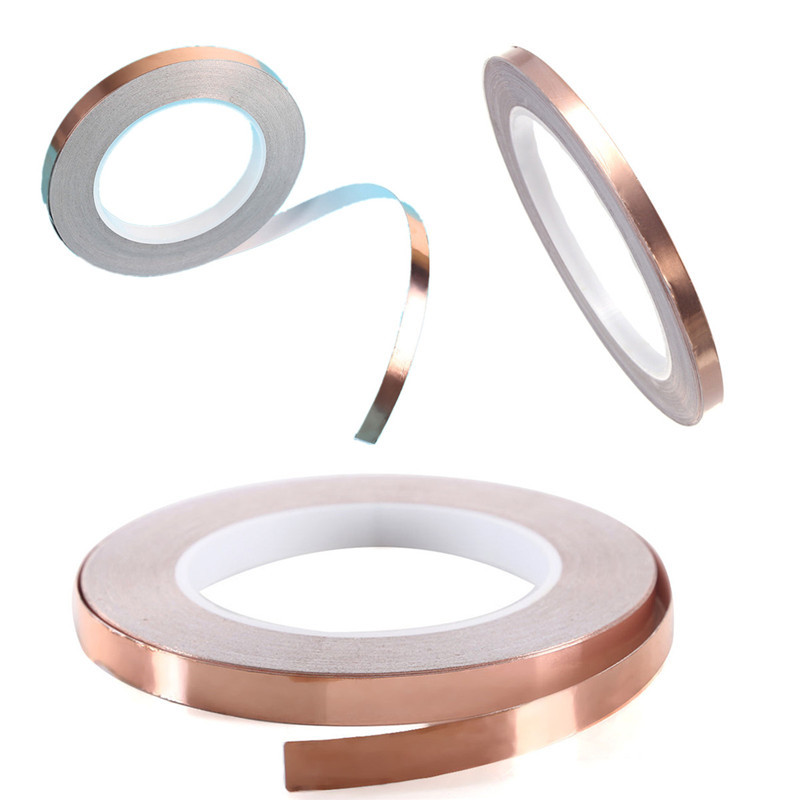

MRI Room Conductive Copper Tape Double Adhesive Emi Shielding
Product Description
The purity of copper foil is higher than 99.95%, and its function is to eliminate electromagnetic(EMI)
interference, isolate electromagnetic waves on the human body injury, avoid unwanted voltage and
current without affecting functionality.
Electrical shielding mainly relies on the conductive properties of copper itself, which is excellent.
Copper foil tape is widely used in mobile phones, notebook computers, and other digital products.
Currently, on the market most commonly used copper foil tape, general test performance is as
follows: copper foil tape Material: CU 99.98%.
In addition, electrostatic discharge after the ground has a good effect.
Specification of 0.06mm thickness copper tape
| Specification(0.06mm thickness) | |||||
| Item | Unit | Specification | Texting Standard | Texting Method | Others |
| Copper Thickness | u | 25 | 25± 3 | ||
| Basis Weight | g/ m2 | 160 | 160± 10 | ||
| Copper Foil | % | 99.95 | 99.95 | ||
| Glue Thickness | u | 35 | 35+ 3 | ASTM- 1000 | |
| Composition | ----- | Acrylic glue | Acrylic glue | ||
| Total thickness | u | 60 | 60+5 | ||
| Steel Adhesion | kg/ 1" | 0.8 | 0.8 | ASTM- 1000 | Initial adhesion tester |
| Initial Adhesion | kg/ 1" | 1 | 1 | J.DOW | Electronic Stripping Tester |
| Rentention(cohesion) | kg/ h | 48 | 48 | PSPC-7 | Viscosity Tester |
| Weather Resistance | ℃ | minus10- 120℃ | minus10-120℃ | ||
| Inventory Condition | ----- | ----- | temperature:25℃ | ||
| RH:65% | |||||
| Insulation Resistance | Ω | 0.01- 0.06 | 0.01-0.06 | ||
| Inventory Validity | 6 month | |
|||
Application
Suitable for all kinds of transformers, mobile phones, computers, PDA, PDP, LCD monitors, notebook
computers, photocopiers, and other electronic products where domestic electromagnetic shielding.
Copper foil tape is a metal tape, mainly used in electromagnetic shielding.
Packing
Our copper tape can be packed in paper carton and wooden cases and also we can offer customized
packing. It is fit for express transportation which offers door-to-door service and also sea and air shipment,
it can do well protection for water and dirty proof.
