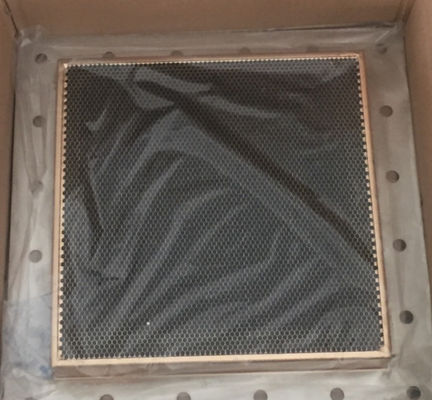

300mm*300mm Shielding Emi Honeycomb Vents With Frame
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Beijing, China | Material | Stainless Steel/Brass/Tin Plated |
|---|---|---|---|
| Function | Ventilaion | Design Style | Traditional |
| Size | 300mm X 300mm/300mm*600mmc/Customizable | Application | Hospital |
| Color | Brass,Silver Or Customized,Red Copper | Product Name | Rf Shield Brass Honeycomb Vent With Frame For Mri Cage,Hot Sale Honeycomb Vent For MRI RF EMC Shielding,EMCPIONEER Steel Honeycomb Vent For Anechoic Chamber |
| Type | EMC Filter,Ventilation,HVAC Systems,Air Conditioning,MRI Room Shielding Installation | Cell Size | 0.56-28 Mm,Customized |
| Frame | Frame Or Unframe,customized | Shielding Effectiveness | 14KHz-40GHz Meet 100dB,120db,14kHZ--40Ghz |
| Highlight | 300mm*300mm emi honeycomb vents,frame emi honeycomb vents,frame honeycomb waveguide air vents |
||
Product Description
Honeycomb Vent
Honeycomb filters are utilised to obtain effective electromagnetic shielding while assuring, at the same time, excellent airflow. The filters may be provided in various materials, with or without EMI/EMC frame and gaskets (and environmental sealing), ready for installation.
In common, we distinguish it from its material, thickness, cell hole size, outer size,
with or without frame.
We have Stainless Steel, Tin plate, Brass, even Aluminum materials.
Product Specification
|
Material
|
Thickness
|
Cell Hole Size
|
Outer Size
|
Frame
|
|
Stainless Steel
|
25mm, 50mm, Customized.
|
3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm
|
300*300, 300*600, 600*600, Customized
|
H type, C type, without frame.
|
|
Tin Plate
|
||||
|
Brass
|
||||
|
Aluminum
|
Product features
the cut-off waveguide ventilation window is composed of hexagonal honeycomb core material with frame.
On the premise of ensuring efficient ventilation, the principle of high pass and low resistance of cut-off waveguide
is used to effectively shield electromagnetic wave. Generally speaking, the cut-off principle of cut-off waveguide is:
l ≥ 5D (L: waveguide length, D: maximum diameter of waveguide section), Therefore, the shielding effectiveness of
the cut-off waveguide ventilation window depends on the length of the waveguide (i.e. the thickness of the honeycomb
core and the size of the aperture of the honeycomb core)
