2oz 0.07mm Electrodeposited Copper Foil Shielding Strip 1290mm

  • 2oz 0.07mm Electrodeposited Copper Foil Shielding Strip 1290mm
  • 2oz 0.07mm Electrodeposited Copper Foil Shielding Strip 1290mm
Place of Origin China
Brand Name Jovi
Certification SGS
Model Number 1-CF-1
Minimum Order Quantity 200kg
Price USD 14-17 + kg
Packaging Details Wooden Case
Delivery Time 5-8 work days
Payment Terms L/C, D/A
Supply Ability 20MT per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 2oz 0.07mm 1290mm Electrodeposited Copper Foil Sheet Shielding Strip Thickness 2oz 0.07mm
Material Pure Copper Width 1290mm
Packing Wooden Case MOQ 200kg
Highlight

2oz copper foil shielding

,

0.07mm copper foil shielding

,

electrodeposited copper foil tape emi shielding
Leave a Message
Product Description

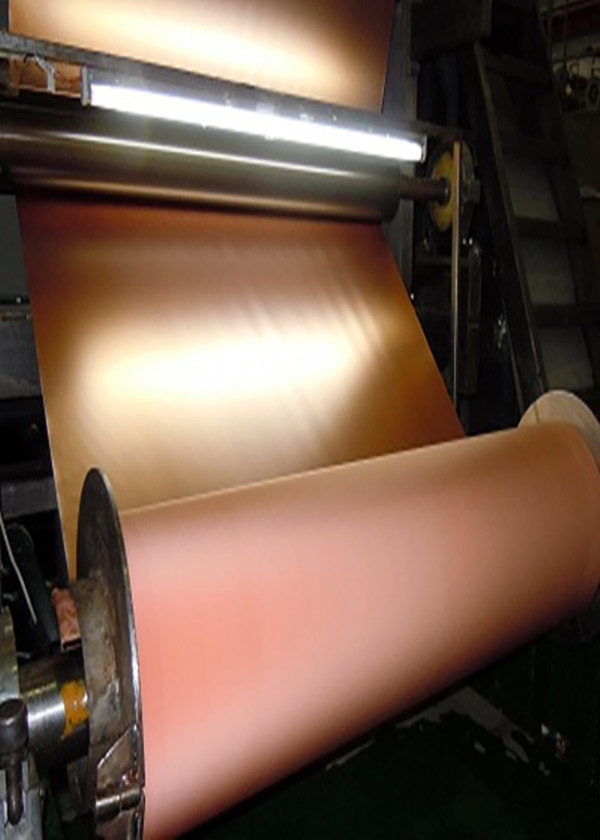

2oz 0.07mm 1290mm Electrodeposited Copper Foil Sheet Shielding Strip



Quick Detail:



1. 2oz 0.07mm thickness 1290mm width

2. MOQ 200kg

3. Using for MRI RF Room or Faraday Cage Shielding Field

4. High Elongation and high tensile performance

5. In roll shape and in wooden case



Description:



1. Lightweight



2. Copper with 1320mm width or wider, can be more easy to install, especially for roofing, wall and floor.



3. Copper serves as an eddy current shield for EMI protection



4. Necessary to prevent RF noise from entering into the MRI scanner and distorting the image. Copper is

generally considered the best shielding for MRI rooms compared with Al and GL..



5. High-performance, vertically-supported modular enclosure



7. Reinforced wall design







Application:



Copper foil can be well used in MRI RF Room Shielding Installation and Faraday Cage.



Specification:





Quality Items General Technical Terms
Normal Thickness 2oz 3oz 4oz 5oz 6oz
0.07mm 0.105mm 0.140mm 0.175mm 0.210mm
Area Weight(g/m2) 560-610 838-960 1100-1280 1380-1600 1650-1920
Tensile Strength Room Temperature ≥28 ≥28 ≥28 ≥28 ≥28
(kg/mm2)
Elongation Room Temperature ≥10 ≥10 ≥10 ≥10 ≥10
(%)
Leakage Points (points/m2) No
High Temperature Anti-Oxidization Performance(180℃/h) No Oxidization
Width Tolerance (+2.0,-2.0)




0.1mm thickness 1320mm width Copper Foil Shielding for MRI RF Room 0



0.1mm thickness 1320mm width Copper Foil Shielding for MRI RF Room 8





FAQ:



1. What is the delivery time?



5-8 working days after receiving payment.



2.What is MOQ ?



200kg per roll.



3. What service can you offer?



High-quality products, competitive price, warmly following until you receive, and also technical support during use once you need.



4. What shipment way can you offer?



By air, by sea, by train.
