0.15mm Rolled Copper Shielding Sheet High Purity
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Mri Room Installation | Material | Pure Red Copper |
|---|---|---|---|
| Width For Copper Foil | 1295mm - 1370mm | Thickness | 0.15mm |
| Usage | RF Cage MRI Room Installation | Purity | 99.9% |
| Delivery Time | 5-8working Days | Sample | Available |
| Highlight | 0.15mm copper shielding sheet,high purity copper shielding sheet |
||
Product Description

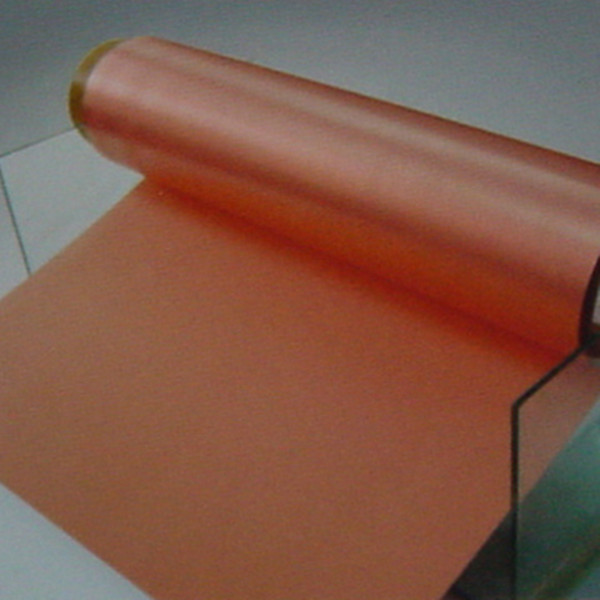

0.15mm Rolled Copper Sheet High Purity for Shielding
Description:
Copper foil is widely used for MRI room construction. MRI combines a strong magnetic field with radio waves to get images by capturing molecule reactions to the radio waves. MRI requires effective RF shielding to capture the optimal image. Some common shielding materials include copper, galvanized steel, aluminum etc. Copper is nonferrous or non-magnetic and is preferred by some MRI vendors because of this.
Besides this, copper foil can also be used in:
- PCB board manufacturing
- Electrical Repair
- Decoration
- Materials for making paper circuit
Specification & Features
- Material: Red Copper
- Purity: 99.9%
- good thermal conductivity
- electrical conductivity
- corrosion resistance
ED copper foil
| Quality Items | General Technical Terms | ||||
| Normal thickness | 2oz | 3oz | 4oz | 5oz | |
| 0.07mm | 0.105mm | 0.14mm | 0.175mm | ||
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | |
| Tensile strength | Room temperature | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) | |||||
| Elongation | Room temperature | ≥10 | ≥10 | ≥10 | ≥10 |
| % | |||||
| Leakage points(points/m2) | No | ||||
| High-temperature Anti-Oxidization Performance(180℃/h) | No Oxidization | ||||
| Width Tolerance | (+2.0 ,-2.0) | ||||
Application:
There are two main installation ways of RF cage building.
ED copper foil 1320mm -basic step- Make Wooden Panel +Put copper foil Covered
wooden frame +assemle copper foil wooden panel together.
Finished RF shielded cage as below:
RA copper foil 600mm- basic step -Make bending edges of copper sheet +Fix sheets on wood walls
+ welding edges of 2 pcs sheets together.
Finished RF shielded cage as below:
Q1. Can I have a sample order?
A: Yes, we welcome sample orders for testing.
Q2. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. Airline and sea shipping is also optional.
Q3. Do you have MOQ requirements?
A: MOQ is 200kg for ED copper foil 1320mm, 500kg for RA copper foil 600mm.
