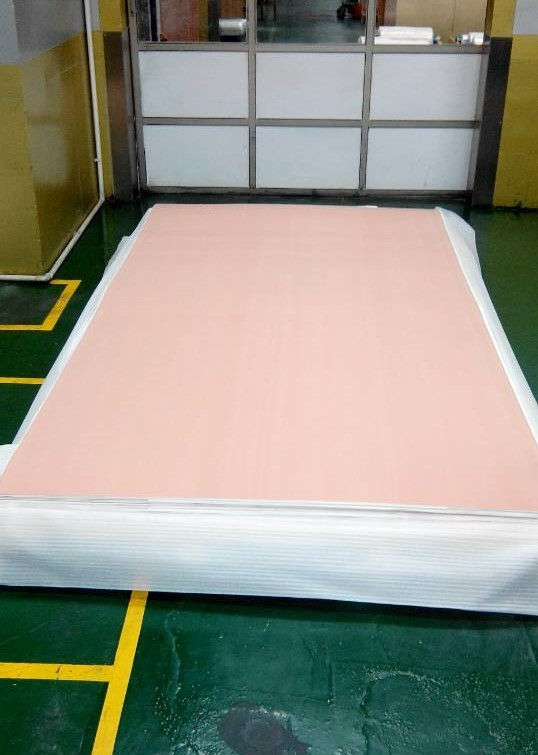

4oz Thickness 0.14mm Copper Foil Roll Shape Coil
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Mri Room RF Cage | Material | Pure Copper Foil |
|---|---|---|---|
| Purity | 99.9% | Width | 1320mm Maximum 1370mm |
| Thickness | 0.14mm | Delivery Time | 5-8working Days |
| Sample | A4 Free Available | Tensile Strength | Excellent |
| Highlight | 4oz thickness copper foil roll,0.14mm copper foil roll,mri room copper foil shielding |
||
Product Description
4oz Thickness 0.14mm Roll Shape Copper Foil Shielding Coil
Description:
Copper is durable, has superior electrical conductivity, and is extremely corrosion-resistant.
Copper is also easily formed meaning that the shapes of the shield can be easily modified
to suit rooms of different shapes and sizes.
The purity is higher than 99.95%, its function is to eliminate electromagnetic interference (EMI),
isolation electromagnetic damage to the human body, to avoid voltage and current and the influence
function. Healthcare institutions and other industries. MRI copper foil is a must when build a MRI room,
it could effectively stay away from static electricity and restrain the disturbance of electromagnetic waves.
we have working on MRI shielding room for many years.
Specification:
| Quality Items | General Technical Terms | ||||
| Normal thickness | 2oz | 3oz | 4oz | 5oz | |
| 0.07mm | 0.105mm | 0.14mm | 0.175mm | ||
| Area Weight(g/m2) | 560-610 | 838-960 | 1100-1280 | 1380-1600 | |
| Tensile strength | Room temperature | ≥28 | ≥28 | ≥28 | ≥28 |
| (kg/mm2) | |||||
| Elongation | Room temperature | ≥10 | ≥10 | ≥10 | ≥10 |
| % | |||||
| Leakage points(points/m2) | No | ||||
| High-temperature Anti-Oxidization Performance(180℃/h) | No Oxidization | ||||
| Width Tolerance | (+2.0 ,-2.0) | ||||
Application:
ED copper foil 1320mm -basic step- Make Wooden Panel +Put copper foil Covered
wooden frame +assemle copper foil wooden panel together.
Finished RF shielded cage as below:
RA copper foil 600mm- basic step -Make bending edges of copper sheet +Fix sheets on wood walls
+ welding edges of 2 pcs sheets together.
Finished RF shielded cage as below:
FAQ:
Q. Can I have a sample order?
A: Definitely Yes, A4 size sample can be sent to you freely.
Q.What is the type of shipping and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. Airline and sea shipping is also optional.
Q. Do you have MOQ requirements?
A: MOQ is 200kg for ED copper foil 1320mm, 500kg for RA copper foil 600mm.
