Zero Load Lead Equivalent 1pb Radiology Lead Gowns Mobile Lead X Ray Protection Shield

  • Zero Load Lead Equivalent 1pb Radiology Lead Gowns Mobile Lead X Ray Protection Shield
  • Zero Load Lead Equivalent 1pb Radiology Lead Gowns Mobile Lead X Ray Protection Shield
Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-14
Minimum Order Quantity 5pcs
Price usd76/pc-usd987/pc
Packaging Details in customized wooden cases or paper cases
Delivery Time 5-8working days
Payment Terms L/C, T/T, Western Union
Supply Ability 500000pcs/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Of Cloth Radiation Protection X Ray Protection Products Apron Lead Protective Collar Size S M L Or Arrcording To Your Requirement
Lead Protective Screen Type With Visible Window /without Visible Window Lead Apron Type 0.3mmpb 0.5mmpb Softy
Instrument Classification Class II Application X-ray Room .Radiography Department ~,made Of High Quality Lead Rubber
Lead Equivalent 0.50mmPb,0.35,0.25~0.50mmPb Function X-ray Radiation Protection,Ray Protective,Medical Radiography
Highlight

1pb radiology lead gowns

,

x ray protection radiology lead gowns

,

mobile lead shielding aprons
Leave a Message
Product Description

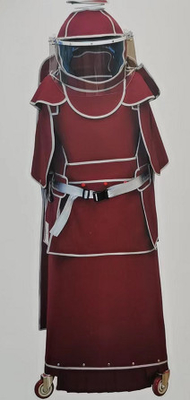

Radiation Protection X Ray Protection Products Apron Lead Protective Collar



1.Description
The X-ray protective chamber is composed of a special material and a certain structural relationship to form a human exoskeleton support body. The lead cap, lead mask, lead garment and lead skirt and other protective equipment are installed on the exoskeleton support body, and all its weight is borne by the support body.Inside the exoskeleton, an X-ray shield is formed.
The operator will open the rear door, insert his hands forward into the sleeves, push the door back with his left hand, the door will automatically close, adjust the height suitable for his own height.
It can follow the operator to walk, all kinds of actions are not affected, because of the superior conditions of the support body, the operator does not need to bear the weight, the lead cap, lead clothing, lead skirt thickness thickened to improve the weight of lead, to ensure the safety protection of zero bearing.



2. Specification

1) Lead equivalent : 1mmpb

2)Structure

Items No. Description(mm)

Lead Equivalent

(PB mm)
Supporting main structure 304 Stainless steel structure
Top ventilation lead protective protective cover ∮130 0.5/1
Lead Protective Suit XL-1200mm*650mm/L-870mm*450mm 0.5/1
Lead Protective apron XL-900mm*650mm/L-750mm*450mm 0.5/1
Lead Protective cap 310*260 0.5
Organic lead glass mask 320*220 0.125/0.3
Face mask step-less adjustable bracket 0-90°stop at any angle
Support basket inside radiation cap 310*260
Lead Protective collar 420mm*60mm 0.5/1
Lead Protective sleeves ∮500 0.25
Up-Support on the body 500*400
Damped system 3*280
Height adjusting switch 200*15
Linear guideway BGH15CA
gas spring 220*180*2pcs
Stay-guy L1500*2pcs
Down-Support on the body 700*410
Lead protective rear door 550*900*2 0.25/0.5
Universal wheels 75*100*4pcs



3.How to take on and off

A :Step of Taking on

l 1 Lift the mask

l 2 Untie the front of the lead coat and skirt

l 3 Put on the protective clothing sideways with one arm in the sleeve at the same time

l 4 Straighten the body up with the other arm in the sleeve

l 5 Hold the handles with each hand and press the height adjustment handle with the right hand.

l 6 Adjust the right height to make the shoulders touch the support frame. And lock the appropriate height with loosening the right handle.

l 7 Button the front of the lead coat and skirt

l 8 Pull the mask down (It’s allowable to lift and pull the mask at any time if not used.)



B :Step of Taking off

l 1 Lift the mask

l 2 Untie the front of the lead coat and skirt

l 3 Take off the protective clothing sideways

l 4 Close the front of the lead coat and skirt

l 5 Place the walk-supporting device in the designated area



4.How to Install

l 1. The installation of Walk-Supporting X-ray Protective Clothing is very convenient. Unwarp the packing box, take out of the upper supporting body and the lower one, insert the two vertical rods on the upper support body into the two straight pipes on the pitching loop, tighten the screws and hang the damped wire on the pitching loop.

l 2. Put the coat on the upper supporting body. (Pay attention to align the shoulder seam line with the protective cap vertical line.)





Zero Load Lead Equivalent 1pb Radiology Lead Gowns Mobile Lead X Ray Protection Shield 0
