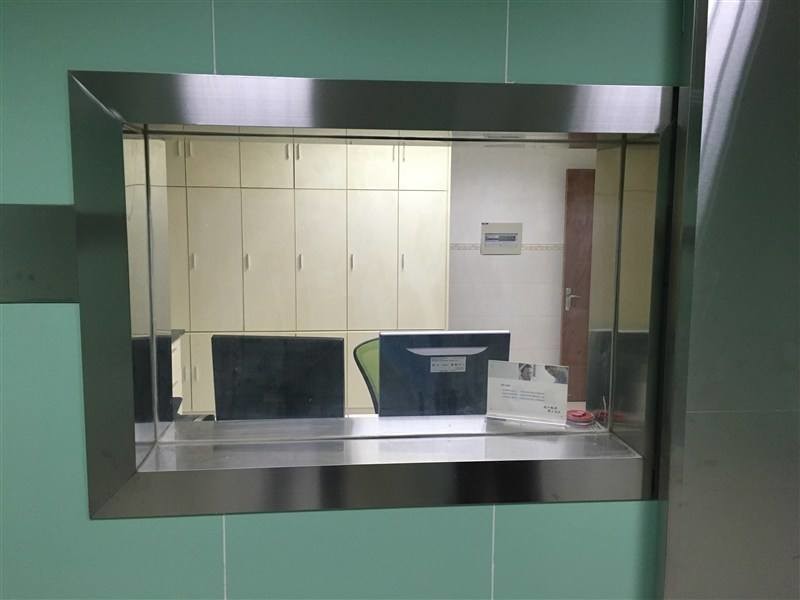

25mm Thickness X Ray Lead Glass 6.71 Mmpb 1200mm*1000mm

  • 25mm Thickness X Ray Lead Glass 6.71 Mmpb 1200mm*1000mm
Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-15
Minimum Order Quantity 1 pcs lead glass
Price USD 1980-2680/pcs
Packaging Details in piece and in wooden case
Delivery Time within 7-10 days after receiving payment
Payment Terms L/C, T/T
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 6.71mmPb Lead Equivalence Radiation Protection Lead Glass Thickness 25mm
Lead Equivalent 6.71mmPb Application Xray Room CT Room
Shape Customized
Highlight

anti radiation x ray lead glass

,

6.71 mmpb x ray lead glass

,

25mm radiation shielding glass
Leave a Message
Product Description

20 mm Thickness 4.4 mmPb Lead Equivalence X-Ray Radiation Protection Lead Glass



Quick Detail:



X-ray lead glass is made of high quality optical grade material. It provides excellent radiation shielding, superb visual clarity,
high light transmission and does not discolour due to radiation. The hard, polished surfaces have excellent scratch resistance
X-ray Protective glass Anti- radiation Lead glass viewing windows are an important feature for any scanning room ,safely allowing the operator to view their patient in a protective environment.







Description:

Depending on your requirements, x-ray protective lead glass can be provided at any size ,
and the lead material used in the glass can vary depending on the strength of protection needed.



Specification:





                                                                        Equivalent
                                                          Standard Thickness Glass
Lead Glass(mmPb) 1.8-2.0 2.5-2.7 3.0-3.2
Thickness(mm) 9-10 11-12 14-15
X-Ray peak voltage(kv) 150 150 200

25mm Thickness X Ray Lead Glass 6.71 Mmpb 1200mm*1000mm 0

We can offer different and customized sizes of lead glass for X-ray and CT Room installation.

Indeed we can also offer a lead door for shielding materials.



8mm

(1.7mmpb)

10mm

(2.1mmpb)

12mm

(2.6mmpb)

15mm

(3.3 mmpb)

18mm

(3.96 mmpb)

20mm

(4.4 mmpb)

25mm

(6.71 mmpb)
200*300 200*300*8 200*300*10 200*300*12 200*300*15 200*300*18 200*300*20 -
300*400 300*400*8 300*400*10 300*400*12 300*400*15 300*400*18 300*400*20 -
400*600 400*600*8 400*600*10 400*600*12 400*600*15 400*600*18 400*600*20 -
600*800 600*800*8 600*800*10 600*800*12 600*800*15 600*800*18 600*800*20 -
600*900 600*900*8 600*900*10 600*900*12 600*900*15 600*900*18 600*900*20 -
1000*800 1000*800*8 1000*800*10 1000*800*12 1000*800*15 1000*800*18 1000*800*20 1000*800*25
1200*800 1200*800*8 1200*800*10 1200*800*12 1200*800*15 1200*800*18 1200*800*20 1200*800*25
1200*900 1200*900*8 1200*900*10 1200*900*12 1200*900*15 1200*900*18 1200*900*20 1200*900*25
1200*1000 1200*1000*8 1200*1000*10 1200*1000*12 1200*1000*15 1200*1000*18 1200*1000*20 1200*1000*25
1200*1200 - 1200*1200*10 1200*1200*12 1200*1200*15 1200*1200*18 1200*1200*20 1200*1200*25
1500*900 - 1500*900*10 1500*900*12 1500*900*15 1500*900*18 1500*900*20 1500*900*25
1500*1000 - 1500*1000*10 1500*1000*12 1500*1000*15 1500*1000*18 1500*1000*20 1500*1000*25
1500*1200 - 1500*1200*10 1500*1200*12 1500*1200*15 1500*1200*18 1500*1200*20 1500*1200*25
1600*1000 - 1600*1000*10 1600*1000*12 1600*1000*15 1600*1000*18 1600*1000*20 1600*1000*25
1600*1200 - 1600*1200*10 1600*1200*12 1600*1200*15 1600*1200*18 1600*1200*20 1600*1200*25
1800*1000 - 1800*1000*10 1800*1000*12 1800*1000*15 1800*1000*18 1800*1000*20 1800*1000*25
1800*1200 - 1800*1200*10 1800*1200*12 1800*1200*15 1800*1200*18 1800*1200*20 1800*1200*25
2000*1000 - 2000*1000*10 2000*1000*12 2000*1000*15 2000*1000*18 2000*1000*20 2000*1000*25
2000*1200 - 2000*1200*10 2000*1200*12 2000*1200*15 2000*1200*18 2000*1200*20 2000*1200*25
2400*1200 - 2400*1200*10 2400*1200*12 2400*1200*15 2400*1200*18 2400*1200*20 2400*1200*25



Above size is always available in our stock , if need other sizes , please contact us freely , we can
produce as per your requirement .
Thickness : 7mm / 8mm / 9mm / 10mm / 12mm / 13mm / 14mm /15mm / 16mm / 17mm / 18mm / 20mm /22mm / 23mm / 24mm / 25mm / 30mm / 40mm
/ 45mm / 50mm / 60mm / 70mm / 80mm / 90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 150mm / 160mm / 180mm / 200mm
2. Terms of medical X ray protective lead glass:
Payment: TT
Delivery time: Abt 3 days after your payment
Packing: Foams and wooden case
Shipping: Tianjin Xingang port.



Notices:



1. The surface of lead glass is more easily scratched than that of ordinary glass and should be handled with care.

2. As lead glass materials are rich in lead and barium, lead glass is easy to be contaminated by acid and base,

and is not easy to be installed or stored in a sour or humid environment.

3. When installation, the glass must be mismatched with the wall protection material to prevent radiation leakage at the joint.

4. Lead glass is a brittle material with a large proportion, so it must be handled gently when it is moved.



Application:

Δ X-ray shielding in hospitals
Δ X-ray rooms MRI scanning
Δ observations windows
Δ door glazing
Δ nuclear medicine application
Δ special mitre joint and lamination with float glass allow extended window sizes, creating better observation environments
Δ multiple glazing units providing shaped observation solutions
Disinfection of Radiation Shielding Glass
Δ only use water, a mild detergent and a soft cloth
Δ Lead glass can be disinfected using commercially available disinfectants that has approved. Disinfection using ultraviolet irradiation is also possible
Δ radiation shielding glass should never be exposed to moisture or temperature fluctuations in conjunction with moisture and acidic air
Δ only use a sealant that is free of acids and alkaline substances (e. g. acetic acid, ammonia) during installation. Adhesive
labels can cause discoloration if the adhesive reacts with the glass surface.



FAQ:



Q1. What about the lead time?

A: Usually 5-7 working days.



Q2. Do you have any MOQ limit for led light orders?

A: Low MOQ, 1pc is available.



Q3. How do you ship the goods and how long does it take to arrive?

A: Ship by Air and Sea.
