15 Mm*1200 Mm*1000 Mm X Ray Lead Glass Radiation Protection Ct Room Shielding

  • 15 Mm*1200 Mm*1000 Mm X Ray Lead Glass Radiation Protection Ct Room Shielding
  • 15 Mm*1200 Mm*1000 Mm X Ray Lead Glass Radiation Protection Ct Room Shielding
Place of Origin China
Brand Name Jovi
Certification CE
Model Number 1-CF-15
Minimum Order Quantity 1 PC
Price USD200-2167/PC
Packaging Details Wrapped in kraft paper, then packed in wooden case. Size according to lead glass size, usually 5 pcs per case.
Delivery Time 5-8 work days
Payment Terms L/C, T/T
Supply Ability 3000PCS per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Lead Glass Application X-ray, CT
Size 15 Mm*1200 Mm*1000 Mm Composition Rmon-pbo-sio2 (B2O3)
Function Xray CT Protection Shape Customized
Frame With Frame Or Without Frame Destiny 4.1g/cm³,4.3g/cm³,4.7g/cm³,5.2g/cm³
Lead Equivalent 1.7mmPb-8mmPb Package Customized Wooden Cases
Highlight

15 mm x ray lead glass

,

customized shielding x ray lead glass

,

15 mm x ray shielding glass
Leave a Message
Product Description

8mm 10mm 12mm 15mm 18mm 20mm 25mm X-ray Lead Glass Sheet

X-ray lead glass is made of high quality optical grade material. It provides excellent radiation shielding, superb visual clarity, high light transmission and does not discolour due to radiation. The hard, polished surfaces have excellent scratch resistance .
X-ray Protective glass Anti- radiation Lead glass viewing windows are an important feature for any scanning room ,safely allowing the operator to view their patient in a protective environment.

Products Description
Depending on your requirements, x-ray protective lead glass can be provided at any size ,
and the lead material used in the glass can vary depending on the strength of protection needed.
1) Model : ZF2 / ZF3 / ZF6 / ZF7
2) Size of Lead glass
X-ray Lead Glass Dimension
L x W
8mm
10mm
12mm
15mm
18mm
20mm
25mm
200 x 300
√
√
√
√
√
√
√
300 x 400
√
√
√
√
√
√
√
400 x 600
√
√
√
√
√
√
√
600 x 800
√
√
√
√
√
√
√
600 x 900
√
√
√
√
√
√
√
1000x800
√
√
√
√
√
√
√
1200x800
√
√
√
√
√
√
√
1200x900
√
√
√
√
√
√
√
1200x1000
√
√
√
√
√
√
√
1200x1200
√
√
√
√
√
√
√
1500x900
√
√
√
√
√
√
√
1500x1000
√
√
√
√
√
√
√
1500x1200
√
√
√
√
√
√
√
1600x1000
√
√
√
√
√
√
√
1600x1200
√
√
√
√
√
√
√
1800x1000
√
√
√
√
√
√
√
1800x1200
√
√
√
√
√
√
√
2000x1000
√
√
√
√
√
√
√
2000x1200
√
√
√
√
√
√
√
2400x1200
×
√
√
√
√
√
√
* Above is standard size , non-standard size can be customized
Above size is always available in our stock , if need other sizes , please contact us freely , we can
produce as per your requirement .
Thickness : 7mm / 8mm / 9mm / 10mm / 12mm / 13mm / 14mm /15mm / 16mm / 17mm / 18mm / 20mm /22mm / 23mm / 24mm / 25mm / 30mm / 40mm
/ 45mm / 50mm / 60mm / 70mm / 80mm / 90mm / 100mm / 110mm / 120mm / 130mm / 140mm / 150mm / 160mm / 180mm / 200mm
2. Terms of medical X ray protective lead glass:
Payment: TT
Delivery time: Abt 3 days after your payment
Packing: Foams and wooden case
Shipping: Tianjin Xingang port.
Specification:
Model
Refractive index
Density (G/cm3)
Lead Equivalent
Sio2 (%)
Pb3O4 (%)
Others (%)
Transparency
ZF2
1.6725
4.2
0.21
39.1
55.41
5.49
90%
ZF3
1.7172
4.46
0.24
33.88
61.05
5.07
85%
ZF6
1.755
4.76
0.27
30.96
65.06
3.98
75%
ZF7
1.06
5.2
0.33
27.27
70.93
1.8
70%



Packaging & Shipping

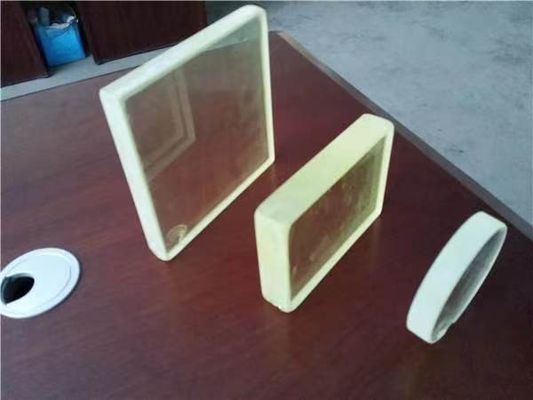

The main photos of the products:
Anti-Radiation Lead Glass Windows for X-Ray Room
Packaging:lead glass window with Standard Sea-worthy package , fixed by belt then loaded into fumigated wooden box .
20Gp - 2.352(width) *2.385 ( Height ) * 5.90 ( Inside length ) Meter
40Gp - 2.352(width) *2.385 ( Height ) * 11.8 ( Inside length ) Meter
40HQ - 2.352(width) *2.69 ( Width ) * 5.90 ( Inside length ) Meter



Shipping:7-10 day against the payment ,

Anti-Radiation Lead Glass Windows for X-Ray Room



Our Services

Customized service :

we can design the lead glass window according to the customer require. Generally speaking, the lead glass window frame is about 5cm thick. Please note we should know the lead glass window size you need include the door frame size or not.

Why choose our factory?

We quote, produce, deliver and best after-sale service.

1. Advanced process equipment

2. Competitive price and high quality

3. Excellent after-sale service

4. Attractive design and various styles

5. Powerful technology R&D team

6. Strict quality assurance system and perfect testing means

7. Advanced process equipment

8. Delivery on time

9. Have a good reputation in the domestic and overseas.

When you inquiry, please tell us:

1. The lead equivalent?1mmPb, 2mmPb and so on.

2. The size for the lead door: length and width?

3. Single or double door?

4. Sliding door or swing door?
