Brass 25mm Thickness Honeycomb Waveguide Air Vents Faraday Cage Installation
| Place of Origin | China |
|---|---|
| Brand Name | Jovi |
| Certification | CE |
| Model Number | 1-CF-4 |
| Minimum Order Quantity | 5 pc |
| Price | $155/pc-$320/pc |
| Packaging Details | in piece and in wooden case |
| Delivery Time | within 10-14 wroking days after receiving payment |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 2000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Brass Honeycomb Shielding Vent 25mm Thickness Faraday Cage Installation | Application | Building,MRI EMC RF Room,Faraday Cage |
|---|---|---|---|
| Shielding Effectiveness | 14KHz-40GHz Meet 100dB | Frame | With Frame Or Without Frame |
| Nominal Center Frequency | Microwave Absorbing Material | Size | 300*300/300*600/600*1200mm |
| Highlight | 25mm thickness honeycomb waveguide air vents,shielding honeycomb waveguide air vents,frame honeycomb air vent |
||
Product Description

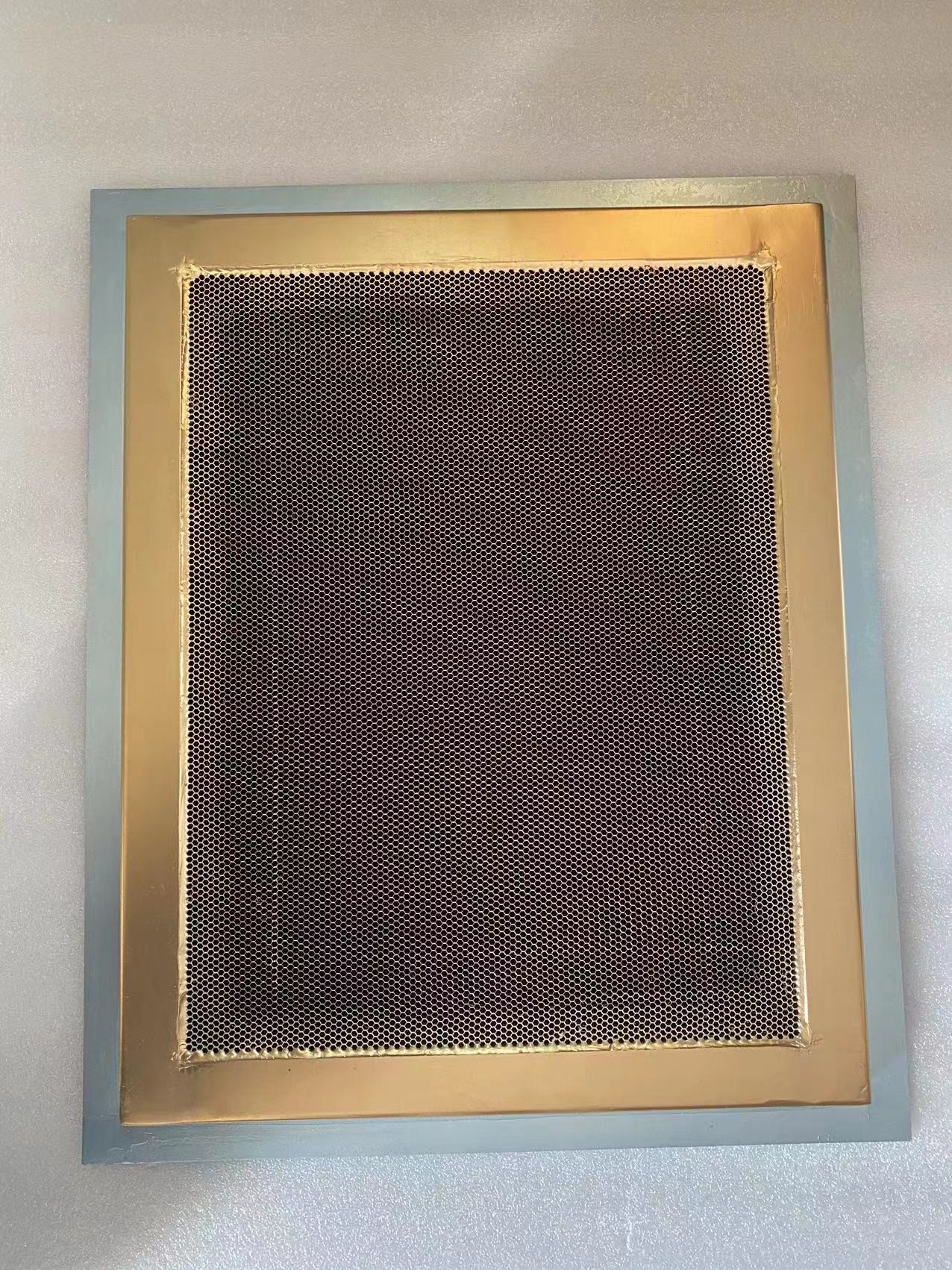

Brass Honeycomb Shielding Vent 25mm thickness Faraday Cage Installation
Description:
JOVI's line of ready-to-install EMI/RFI honeycomb filters and Waveguides provide optimum EMI/RFI shielding with minimum pressure drop for the ventilating air. Shielded vent panel effectiveness is accomplished using waveguide honeycomb design principles.
For most applications,stainless code- 32 honeycomb (properly installed using Jovi' mounting frame with integral EMI/RFI gasket) will provid a economical choice for lower shielding frequency
Their special design lets air flow into and out of an EMI/RFI shielded enclosure. This feature allows for the cooling of electronics as well as air circulation for manned military shelters as well as electronic boxes and cabinets.
Details :
Honeycomb window guide through the strom is widely used in the field of electromagnetic shielding,
shielding cabinet for shielding room air circulation and good shielding performance. Depending on the
pore size and thickness, the shielding effectiveness can be improved.
| material | brass /Tin plated steel | ||
| core area size 300mm*300mm | hole cell 3.2mm | hole cell 4.2mm | hole cell 5.2mm |
| thickness 25mm | 300mm*300mm*25mm*3.2mm | 300mm*300mm*25mm*4.2mm | 300mm*300mm*25mm*5.2mm |
| thickness 50mm | 300mm*300mm*50mm*3.2mm | 300mm*300mm*50mm*4.2mm | 300mm*300mm*50mm*5.2mm |
| Frequency Band | Attenuation | |
| 100KHz | > 100dB | |
| 1MHz- 10MHz | > 100dB | |
| 10MHz- 30MHz | > 100dB | |
| 3MHz- 1G Hz | > 100dB | |
| 1GHz- 10GHz | > 100dB | |
| Available Thickness | ||
| 12.5mm | 25mm | 50mm |
| Available Material | ||
| Stainless Steel | Brass | Tinplate |
| Available Size | ||
| The largest vent size is 600mm*900mm | ||
FAQ:
1. Can we get a product sample?
Yes, we can offer sample to you.
2. As for the honeycomb, what materials can you offer ?
We can offer brass / stainless steel/ tin plated steel materials....
3. What is packing ?
It is packed with wooden case.
