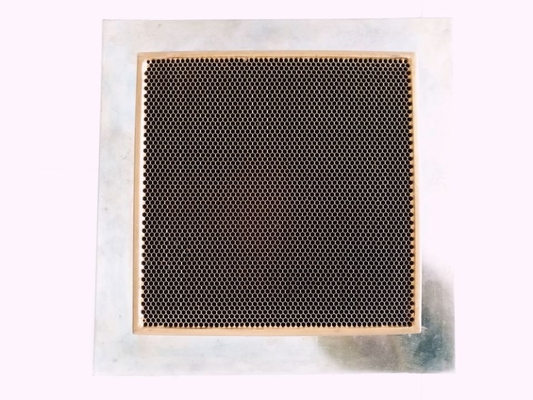

High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation

  • High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation
  • High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation
Place of Origin Beijing, China
Brand Name jovi
Certification CE
Model Number 1-cf-2
Minimum Order Quantity 1 piece
Price USD 210 piece
Packaging Details In wooden cases
Delivery Time 7-14days
Payment Terms T/T, ,L/C, D/P
Supply Ability 3500 pieces per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Tinplate Steel, Brass, Aluminium, Stainless Steel Shape Honeycomb
Accessories With/without Frame Application MRI Shielding Ventilation
Width 300mm/600mm Size Can Be Customized
Highlight

RF room ventilation Honeycomb Air Vent

,

Honeycomb Air Vent

,

High Shielding Honeycomb Air Vent
Leave a Message
Product Description

Product Description

Honeycomb Vent is a special but indispensable part of a MRI/ RF shielding room and shielded cabinet.While honeycomb vent can provide high shielding effectiveness, it also provide ventilation for the shielded room. It is usually using for air pass. Its shielding range is ≤20GHz. In common, we distinguish it from its material, thickness, cell hole size, outer size, with or without frame.

We have Stainless Steel, Tin plate steel, Brass, even Aluminum materials.

High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 0



High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 1

Product Specification
Material
Thickness
Cell Hole Size
Outer Size
Frame
Stainless Steel
25mm, 50mm, Customized.
3.2mm, 4.8mm, 5.2mm, 6.2mm, 8.2mm
300*300, 300*600, 600*600, Customized
H type, C type, without frame.
Tin Plate
Brass
Aluminum
High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 2
Certifications
High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 3Our copper foil products have passed ISO 9001:2008, IPC-4562, RoHS and other certifications, with high elongation, high tensile strength and other excellent performance.packaging&shipping
High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 4High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 5High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 6

The honeycomb vent is packed in wooden cases. We can provide different modes of transportation, such as sea, air and express. Sea transportation is the most economical way.Related product
Based on ED copper foil, we have continuously enriched our products over the years. We can now provide a range of shielding materials for MRI RF shielding installation. We have high-quality doors and Windows, EMI filters, honeycomb vents, copper mesh, copper tape, copper figure gasket, copper wool, conductive foam ,etc.. Because we are always committed to providing high-quality products for customers, more and more friends from all over the world become our customers.Contact us

High Shielding Honeycomb Air Vent 300 X 300 Mm For MRI/RF Room Ventilation 7
