Nuclear Protection Hot Cell Comfort And Fingerprint Free Durability

Product Description:

Our F18 Hot Cell Type Nuclear Radiation Protection product is the perfect solution for those needing to protect themselves from exposure to radiation. With features such as nuclear protection, you can be sure that you are safe from the harmful effects of radiation.

Our product is not only functional, but it is also comfortable to wear. With comfort being one of our top priorities, we have made sure that our Nuclear Radiation Protection product has a high level of comfort. You can wear our product for hours without feeling uncomfortable or restricted.

Our Nuclear Radiation Protection product is designed specifically for those working with F18 Hot Cell. This means that our product is tailored to meet the needs of those working in this field. Whether you are working in a laboratory or hospital setting, our product is the perfect solution for keeping you safe from radiation exposure.

So if you are looking for a reliable and comfortable solution for your Nuclear Radiation Protection needs, look no further than our F18 Hot Cell Type Nuclear Radiation Protection product. With its stylish silver gray color, high level of comfort, and nuclear protection features, you can be sure that you are getting the best protection possible.

Features:

• Product Name: Nuclear Radiation Protection
• Maintenance: No Fingerprint
• Features: Nuclear Protection
• Application: Nuclear Facilities
• Comfort: High
• Color: Silver Gray Color
• Designed for use in Nuclear Radiation Hot Cell
• Provides protection against Nuclear Medical Radiation
• Perfect for use in F18 Hot Cell

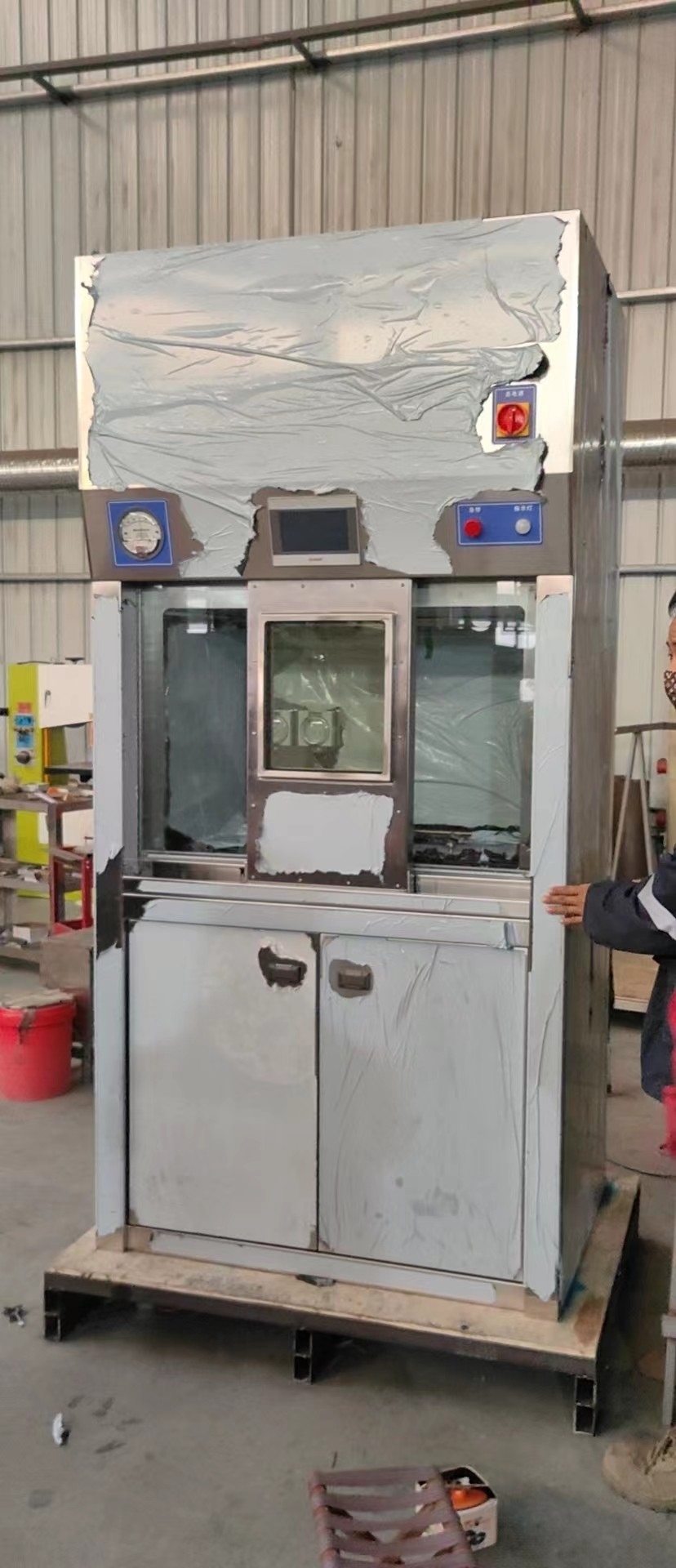

  FDG -F18 special packing hot chamber
  	1: It is convenient for medical personnel to operate. It is designed as a front open protective door and equipped with an inflatable sealing system.
  	2: For the process protection of F18 nuclide automatic and manual packaging operation
  	3:Six sides of lead seal protection, through the hand hole operation, effectively reduce the radiation dose of the staff in the process of packaging operation
  	4: The front side is provided with a high lead glass observation window consistent with the protective capacity of the box
  	5: The front is provided with two operating hand holes, and is equipped with a protective cover with a locking device
  	6: The activity meter detects the well hole, and is equipped with the sunk activity meter ionization chamber protection well, which can adjust the height of the ionization shield chamber up and down
  	7: The electric lifting device of the drug lead tank is configured to effectively reduce the labor intensity of the staff and shorten the close contact time with radioactive drugs
  	8: Equipped with cabinet lighting and sterilization device
  	9: Equipped with radiation monitoring probe, real-time monitoring of environmental radiation dose in the cabinet.
  	10: The inner liner is welded with 2.0mm thick 304 mirror stainless steel, the surface is treated without solder joints, and the Angle is R16 arc Angle transition
  	11: Lead equivalent front, bottom, left and right sides of 50mmPb, other sides of 30mmPb
  	12: Activity meter ionization chamber protection well :≥50mmPb
  	13: With its own power exhaust filtration system, the rated exhaust air volume of the fan is ≥700m³/h, the wind speed of the front hole is ≥0.5m/s
  	14: The dimensions (L x W x H) of a separate hood are not less than 1100mm x 900mm x 2300mm
  	15: Equipped with intelligent AI human-computer interaction control platform, non-contact intelligent control of fume hood lighting, sterilization, negative pressure ventilation, drug lifting platform, switch socket, door interlock and other functions.
  Iodine separate special fume hood
  	1:Equipped with intelligent AI human-computer interaction control platform, non-contact intelligent control of fume hood lighting, sterilization, negative pressure ventilation, medicine lifting Function of descending platform, switch socket, door interlock, etc.
  	2: Meet the process protection for automatic and manual sub-packaging operation of I-131 nuclide iodine
  	3: External size: W1050*D750*H2200mm Inner size: 840W*540D*540mmH
  	4: Lead equivalent front, open side, bottom 50mmPb, other sides 30mmPb
  	5: The Angle adopts R15 arc Angle transition, the surface is smooth and easy to clean
  	6: The inner liner is welded with 304 mirror stainless steel with a thickness of 2.0mm
  	7: The front is provided with lead glass observation window, and the shielding effect of lead glass in the observation window should be consistent with the amount of lead with a thickness of 50mmPb
  	8: The front is provided with two operating hand holes, and is equipped with a protective cover with a locking device
  	9: The electric lifting device of the drug lead tank is configured to effectively reduce the labor intensity of the staff and shorten the close contact time with radioactive drugs
  	10: Configure the paper cup electric drug transmission channel, the linkage display screen touch control to open, and the protective fume hood to form communication and effective protection
  	11: Manual, automatic two medication modes, in the case of special circumstances can not automatically dispense medicine, can realize the manual dispense medicine to the medication window, built-in Sliding tray and special rails
  	12: The activity well has a lifting platform for adjusting the height of the activity meter ionization chamber
  	13: Real-time internal radiation dose level display with safety interlock
  	14: The ventilator inner liner cable seal adopts a special sealing system of "multi-diameter seal" to ensure that radiation protection meets the requirements and the inner liner does not We need an open wire installation
  	15: The front of the fume hood is designed with a touch screen electronic control system, which is controlled by the touch screen for lighting, activity meter electricity, fan, etc
  	16: Internal high radiation dose warning
  	17: Seamlessly compatible with CRC series activity meter, domestic activity meter, real-time reading activity meter indicator
  	18: Silent: less than 50db, wind speed >1.2m/sec, power supply: 220V 50Hz 10A
  Iodine packaging special packaging hot chamber
  	1: It is convenient for medical personnel to operate. The front open-type protective door is designed and equipped with an inflatable sealing system to ensure that the air tightness inside the fume hood reaches ISO10648- 1994, not less than two level sealing, that is, hourly leakage rate ≤2.5×10-3m3/h
  	2: It is used for process protection for automatic and manual sub-packaging operation of I-131 nuclide iodine
  	3: Six-sided lead seal protection, through the operation of hand hole, drug delivery sliding door and other Settings, effectively reduce the radiation dose of staff in the process of packaging operation
  	4: The front side is provided with a high lead glass observation window consistent with the protective capacity of the box
  	5: The front is provided with two operating hand holes, and is equipped with a protective cover with a locking device
  	6: The activity meter detects the well hole, and is equipped with the sunk activity meter ionization chamber protection well, which can adjust the height of the ionization shield chamber up and down
  	7: The electric lifting device of the drug lead tank is configured to effectively reduce the labor intensity of the staff and shorten the close contact time with radioactive drugs
  	8: Equipped with cabinet lighting and sterilization device
  	9: Equipped with radiation monitoring probe, real-time monitoring of environmental radiation dose in the cabinet; A nationally recognized third party test report is required
  	10: The inner liner is welded with 2.0mm thick 304 mirror stainless steel, the surface is treated without solder joints, and the Angle is R16 arc Angle transition
  	11: Configure the paper cup electric drug transmission channel, the linkage display screen touch control to open, and the protective fume hood to form communication and effective protection
  	12: Integrated visual monitoring, doctor-patient intercom
  	13: Manual, automatic two medication modes, in the case of special circumstances can not automatically dispense medicine, can realize the manual dispense medicine to the medication window, built-in Sliding tray and special rails
  	14: Lead equivalent front, bottom of 50mmPb, other sides of 30mmPb
  	15: Activity meter ionization chamber protection well :≥50mmPb
  	16: With power exhaust air filtration system, rated exhaust air volume of the fan ≥1200m3/h, wind speed of the front hole :≥1m/s
  	17: Operation table reserve: activity meter ionization chamber shielding well set, radioactive protection waste box set, drug delivery lifting system set
  	18: The activity meter drug measurement needs to be equipped with an electric lifting device to reduce the hand contact of medical personnel;
  	19: The appearance dimensions (L x W x H) of the divided fume hood are not less than 1050mm x 750mm x 2200mm
  	20: Equipped with intelligent AI human-computer interaction control platform, non-contact intelligent control of fume hood lighting, sterilization, negative pressure ventilation, drug lifting platform, switch socket, door interlock and other functions
  Iodine dosing window (Automatic/Manual)
  	1:It is used for supporting the iodine-131 protective fume hood. After the iodine moisture is loaded, it is transmitted to the iodine taking window through the electric transmission port
  	2:Open by electric push-pull mode, seamlessly compatible linkage to the PLC touch screen of the reassembly hot room, convenient for medical staff to open and close
  	3:The internal size of the iodine window is: 300mm×400mm
  	4:The electric push-pull protective door protection equivalent of 20mmPb
  	5:The corner adopts R15 arc Angle transition, the surface is smooth and easy to clean, and the interior adopts mirror 304 stainless steel
  	6:The surface is 2.0mm thick 304 stainless steel, the surface is anti-fingerprint treatment
  	7:Equipped with Shouting device, radiation lamp connected device, lighting device system, sterilization device
  	1: It is used for supporting the iodine-131 protective fume hood. After the iodine moisture is loaded, it is transmitted to the iodine taking window through the electric transmission port
  	2: Open by electric push-pull mode, seamless compatible linkage to the PLC touch screen of the distribution hot room, convenient for medical staff to open and close outing device, radiation lamp connected device, lighting device system, sterilization device		Open by hands
  	3: The internal size of the iodine taking window is: 300mm×300mm
  	4: Electric push-pull protective door protection equivalent of 20mmPb
  	5: The corner adopts R15 arc Angle transition, the surface is smooth and easy to clean, and the interior adopts 304 stainless steel mirror
  	6: The surface is 2.0mm thick 304 stainless steel, and the surface is anti-fingerprint treatment
  	7: Equipped with Shouting device, radiation lamp connected device, lighting device system, sterilization device
  Iodine-131 automatic dispenser
  	1: Packaged core: It is suitable for the treatment of thyroid cancer and hyperthyroidism, and it can be packaged into oral cups or cillin bottles.
  	2: Sub-assembly data establishment: unrestricted, according to the user's inspection amount, sub-assembly real-time archive, with its own trial software to evaluate sub-assembly needs.
  	3: Output storage printing: label information can be set, can be printed or converted to pdf file storage.
  	4: Activity confirmation: the stock liquid bottle can be placed in the protective tank without taking out to achieve "one key to obtain specific activity" and automatic storage, and the remaining liquid information is displayed in real time.
  	5: Sub-packing volume: can be set, according to the actual requirements of users
  	6: Stock concentration value: real-time display of stock concentration at each time point.
  	7: Dose error: design standard ≤±3%,
  	8: Setting of dispensing speed and medication time: dispensing speed can be adjusted by users; The user can set a specific medication time, and the system automatically converts the required activity to dispense the liquid Ensure accurate dosage of liquid medicine
  	9: Self-calibration of sub-assembly error: When the sub-assembly error is greater than 5%, the system automatically corrects.
  	10: Concentration mode setting: The user can choose two concentration modes according to the actual situation to ensure the targeted and accurate administration of drugs for patients with A cancer and hyperthyroidism.
  	11: The user does not need any manual operation, after the drug tank reaches the specified position, the system remote control automatic needle insertion, flushing, measurement and transfer, to the maximum extent To reduce the operator's occupational exposure.
  	12: Anti-volatilization design, considering the volatilization pollution of iodine-131 aerosol, the system designed an independent anti-volatilization switching valve, and the valve was installed for a short time during the separate operation The door is opened, the switch valve is closed and the liquid bottle is closed to minimize the dose level in the hot room. Configure remote control System, data distribution transmission module, providing the second workstation of the control system
  	13: Dilution volume range of stock solution: ≤500ml
  	14: Residual amount of stock solution: ≤2%
  	15: Volume range: 2~50ml
  	16: Dose accuracy: ≤3%
  Source lead tank
  	1: Use for FDG radiopharmaceutical transport
  	2: Material: lead, stainless steel
  	3: Shielding: 50 mm Pb Inner size: Suitable for 10 ml, 20ml sterile cillin bottles External dimension: 17.0cm (h) * 11.2cm (d)
  Stainless steel protected transfer car
  	1: Material made of 304 stainless steel
  	2: Lead protection is 20mmPb
  	3:I nternal storage source lead tank *1
  	4: Convenient for the hospital to push and pull, designed as a cart
  Lead-protected paper cup collection box
  	1: Material: Lead, stainless steel
  	2:4 load-bearing casters with locking
  	3: Can be moved or fixed
  	4: Rotary opening to avoid hand contact with dirt
  	5: Configure four paper cup delivery ports
  	6: Mask: 20mmpb
  	7: External size: 400mm(H)*400mm(W)*500mm(L)
  Radioactive waste storage tank
  	1: Material: Lead, stainless steel
  	2: sliding cover plate, cover plate equipped with rotary entry
  	3:4 load-bearing casters with locking
  	4: Can be moved or fixed
  	5: Appearance anti-fingerprint processing, no surface impression
  	6: Mask: 20mmpb
  	7: External size: 400mm(H)*400mm(W)*500mm(L)
  Remote control lever for radioactive source
  	Radioactive remote operation rod is used to remove heavy objects such as radioactive source container cover, radioactive materials and radioactive tanks. The handle length is 1100mm. The clamping rod tool is made of stainless steel to ensure that the distance between the central part of the operator and the radioactive source is > 1200mm:
  	1: Material: stainless steel and aluminum
  	2: Large opening: 120mm
  	3: Size: Length 1100mm
  Single /Double open source safe
  	The source protection safe is specially made of lead and 304 stainless steel, with double stainless steel inside and outside, with a flat protective door that is easy to open or close quickly, equipped with double lock control, for safe temporary storage of radioactive sources, in line with environmental regulations, is one of the necessary protective equipment for nuclear medicine.
  	1: Main material: lead, 304 stainless steel
  	2: Lead shield: 20mm Pb (customizable)
  	3: Protective door: flat overlapping, front open,
  	4: Configuration: 2 stainless steel handle lock, internal double layer storage plate
  	5: Appearance anti-fingerprint processing, no surface impression
  	6: Safe size: 1000mm(H) * 700mm(W) * 450mm(D)	600mm(H) * 550mm(W) * 550mm(D)
  Radioactive waste gas treatment unit
  	1: The material is made of 304 stainless steel and lead plate
  	2: Special radioactive waste gas filtration device for radiation area
  	3: Protection standard 5-20mmPb, can be customized
  	4: Fan size, can be customized air volume 3000-30000m3/h
  	5: Profile fan box, high efficiency, medium efficiency, activated carbon treatment device
  	6: Equipped with PLC control panel, can be periodically switched on and off Settings
  	7: Installation method: lifting, can be connected with the roof exhaust fan
  Bedside isolation protective screen
  	1: Main material: lead, lead glass, 304 stainless steel
  	2: Protective screen size: 1500mm(H) *1800mm(W)
  	3: Lead shield: 10 mm Pb
  	4: Lead window size: 300mm(H) * 200mm(W) *10mmPb
  	5:4 load-bearing casters with lock, which can be moved or fixed
  	6: Divided into single, double, triple

Technical Parameters:

Applications:

One of the primary application occasions for this product is in facilities that deal with nuclear medical radiation, such as those that handle I131 Hot Cell. These facilities require a high level of protection to prevent radiation exposure to workers and the surrounding area. The Jovi 1-CF-55 Nuclear Radiation Protection product provides this protection, ensuring that workers can safely handle nuclear materials without fear of harm.

Another scenario where this product would be useful is in emergency situations where there is a risk of nuclear radiation exposure. For example, in the event of a nuclear accident or attack, emergency responders and medical personnel would need to be protected from radiation in order to provide assistance to affected individuals. The Jovi 1-CF-55 Nuclear Radiation Protection product can provide this protection, allowing emergency responders to safely enter and exit affected areas.

In addition to its protective capabilities, this product also features a sleek silver gray color that looks great in any environment. And unlike some other materials, it is resistant to fingerprints, making maintenance a breeze.

Overall, Jovi's 1-CF-55 Nuclear Radiation Protection product is an essential tool for anyone who works with or around nuclear materials. With its high level of durability and reliable protection, it is sure to provide peace of mind in even the most challenging of environments.

Customization:

Product Customization Services:

• Brand Name: Jovi
• Model Number: 1-CF-55
• Place of Origin: China
• Type: Hot Cell
• Material: Lead, Stainless Steel
• Maintenance: No Fingerprint
• Comfort: High
• Color: Silver Gray Color

Our Nuclear Radiation Protection product is a high-quality I131 Hot Cell, designed for Nuclear Medical Radiation applications. We offer customizations to ensure the product meets your specific needs. Contact us to learn more about our product customization services for the Nuclear Radiation Hot Cell.

Support and Services:

Our Nuclear Radiation Protection product is designed to keep individuals safe from harmful radiation exposure. Our technical support team is available 24/7 to assist with any questions or concerns regarding the product. We offer a range of services, including installation, maintenance, and repair, to ensure that the product is functioning properly and effectively. Our team also provides training on how to use the product correctly and safely. We are committed to providing top-notch support and services to our customers to ensure their safety and peace of mind.
