High Durability Nuclear Radiation Protection Silver Gray Color Acid Resistant Steel

Product Description:

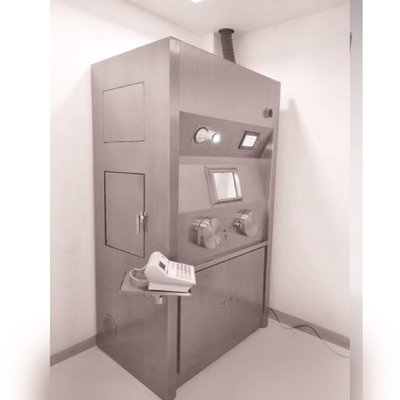

JVVMEG-HCD75-MP-RFM is equipped with an air cleaning system of negative pressure exhaust air. It is primarily used for radiation shielding in the repacking process of radioactive drugs. The heating chamber has three main sections. The control area is located in the upper part, and the air cleaning unit and high-efficiency air filtration unit are installed here. The control panel is user-friendly and easily observable by the operator. The working area is located in the middle, and the front is installed with lead glass Windows and two handling hand holes for entering the working area. The auxiliary area is located in the lower part, and it is here that the shielding well of the activity meter and ionization chamber and the radioactive material delivery device are installed, meeting the required use function of radioactive medicine during the repacking process.

• cGMP biological cleanliness level working area
  • Configured with vertical laminar negative pressure ventilation system
  • Material as Integrated SS314 profile
  • Cleanliness: Class A grade (IS0100)
  • Air supply model: Vertical laminar flow
  • Laminar wind speed: 0.35-0.56m/s
  • Demand air volume: 500 m3/h
  • Sealing way: Air inflating
  • Exhaust air filtration: fully efficient HEPA99.995% @0.5um (H14)
  • Exhaust air filtration: Radioactive gas filter adsorption
• Lead shielding conforming to ICRP radiation environmental safety standards
  • Front side: 75mmPB
  • Left/right side: 70mmPB
  • Target line shielding: 60mmPB
• Ergonomically designed operation control panel
  • Control: The human-machine interaction interface controls and feeds back all information
  • Visible lead glass Windows; 320 mm(w)*220 mm(h)
  • Dose monitoring display: integrated in human-machine interaction interface
• Size
  • Internal dimensions: 850 mm (w)*590 mm (d)*680 mm (h)
  • External dimensions: 1125 (w)*1078(d) *2400 (h)
  • Accessories: lamp, UV lamp, ozone sterilization device, power socket, etc

• Protection Delivery Device of Radioactive Medicine
  • Function: No need to open the door of the hot cell, the radioactive materials or lead cans can be transferred into the working area (or removed from the working area) in a low state, reducing manual operation intensity and unnecessary radiation exposure, and improving dispensing efficiency
  • Shield tray: stainless steel 304, Dia115 mm, 60mm pb
  • Transmission mode: pneumatic/linear transmission
• Radiation Protection of Ionization Chamber of Active Meter=Radioactive protective Well
  • At the bottom of radioactive well, there is a lifting adjustment platform to fix or adjust the height of the ionization chamber of the activity meter
  • Radioactive protective well: 70mmpb
• Real-time dose monitoring and radiation safety interlock device
  • Function: Provides real-time display of thermal room radiation levels and radiation warnings, allowing users to preset dose thresholds. The shielding door of the thermal chamber can be interlocked to prevent unnecessary radiation exposure to personnel and the environment caused by incorrect operation
  • Built-in 1 semiconductor detector
  • Energy range: 50 KeV -- 1.5 MeV
  • The dose range: 0 uSv/h to 9999 uSv/h
  • Threshold setting: Arbitrary linkage threshold setting
• Parameters Of Manipulators
  • The joint manipulator has 7 independent movement degrees of freedom in space (X-direction movement, Y-direction movement, Z-direction movement, azimuth rotation, clamp pitch, clamp rotation, clamp opening/closing)
  • The operation is light and flexible, and the balance device of the manipulator meets the requirements of the balance of the operation load

Applications:

One of the main applications of this product is in F18 hot cells. These hot cells are used in the production of medical isotopes, and they require strict radiation protection measures to ensure the safety of workers and the environment. The Jovi Nuclear Radiation Protection product is ideal for use in these hot cells, as it provides excellent protection against nuclear radiation.

Another application for this product is in the use of radiation protection lead cans. These cans are used to transport and store radioactive materials, and they need to be highly durable and provide maximum protection against radiation. The Jovi Nuclear Radiation Protection product is an excellent choice for use in these lead cans, as it is both durable and provides excellent protection against radiation.

Overall, the Jovi Nuclear Radiation Protection product is an essential tool for anyone working with nuclear medical radiation. It provides excellent protection against radiation, is highly durable, and requires no maintenance or contact marks. If you are looking for a reliable and effective solution for nuclear safety, then the Jovi Nuclear Radiation Protection product is the perfect choice.

Customization:

Our Product Customization Services for the Nuclear Radiation Protection Lead Cans:

• Brand Name: Jovi
• Model Number: 1-CF-55
• Place of Origin: China
• Minimum Order Quantity: 1 set
• Packaging Details: in wooden case
• Delivery Time: 25 working days after receiving your payment
• Payment Terms: T/T in advance
• Application: Nuclear Facilities
• Type: Hot Cell
• Features: Nuclear Safety
• Color: Silver Gray Color
• Durability: High

Our product is designed specifically for Nuclear Medical Radiation protection. With our customization services, we can tailor our product to meet your specific needs and requirements. Contact us today to learn more about how we can help you.

Support and Services:

Our Nuclear Radiation Protection product comes with comprehensive technical support and services to ensure optimal performance and safety. Our team of experienced technicians and engineers are available to provide installation, training, and maintenance services. We also offer calibration and repair services to ensure that your equipment is always functioning at its best. In addition, our product comes with a warranty to provide peace of mind and protection against any manufacturing defects. Contact us for more information on our technical support and services.

Packing and Shipping:

Product Packaging:

• The product will be packed in a sturdy cardboard box.
• The packaging will be labeled with the product name, company logo, and handling instructions.
• The product will be securely sealed to prevent any damage during shipping.

Shipping:

• The product will be shipped via a reputable courier service.
• Shipping fees will be calculated based on the destination and weight of the package.
• The estimated delivery time will be provided upon checkout.
• International customers are responsible for any customs duties and taxes that may apply.

FAQ:

Q: What is the brand name of the nuclear radiation protection product?

A: The brand name is Jovi.

Q: What is the model number of the nuclear radiation protection product?

A: The model number is 1-CF-55.

Q: Where is the nuclear radiation protection product made?

A: It is made in China.

Q: What is the minimum order quantity for the nuclear radiation protection product?

A: The minimum order quantity is 1 set.

Q: How is the nuclear radiation protection product packaged and delivered?

A: The product is packaged in a wooden case and delivered within 25 working days after receiving your payment. Payment terms are T/T in advance.
